CAMERA
Film Gauge: Extended Super8 Gate (widescreen exposure area)
Film Frame Size: 4.2 mm x 6.3 mm / Aspect Ratio 1:1.5
Film Cartridge: KODAK Super 8 Cartridges with 50ft / 15m
Frame Rates: 18, 24, 25, 36 FPS / Crystal Sync on 24 & 25 FPS
Run Function: Programmable frame rates with Pressed & Latched Mode
Optional FPS: Function button with programmable alternate frame rates
Body: Full aluminum body, anodized and painted surface
Tripod Mount: Bottom plate, standard 1/4-20 UNC thread
Pistol Grip: Removable / Mounted at tripod thread, with trigger
LENS
Lens Mount: Interchangeable C-Mount / SMPTE Specs
Focal Length: Wide Angle 6 mm Lens 1:1.2 included, exchangeable
Focus / Aperture: Manual focus / Manual iris setting
Image Circle: Min. 11 mm
EXPOSURE
Exposure Control: Built-in light meter / Displayed on screen
Film Stocks: Supports speed of all KODAK Super 8 Film types
Exposure Setting: Via frame rate & manual iris setting
VIEWFINDER
Display Size: 4’’ LCD
Image Display: Optical path, through the lens (TTL) digital viewfinder
Swivel: Supports +/- 90 degrees display turns
CAMERA SET UP
Control Panel: Multilingual user interface on viewfinder display
Set Up: Via capacitive touch as user interface
SOUND RECORDING
Input: 3.5 mm jack connection / Audio in for external microphone, 3.5 mm jack connection / Line-in
Output: 3.5 mm jack connection / Headphone or line-out
Sound Format: .Wav format
Storage: SD Card (max. 32GB – not included) / Exchangeable via SD Card slot
Sound Control: Volume level on screen (optional via menu)
POWER SUPPLY
Battery: Integrated KODAK Battery Pack / 3.7 V-7.200 mAh.
Charging: USB wall adapter – Via micro USB cable
Charging Time: About 3.5 hours max.
CONNECTIVITY
Remote: Remote access connectivity via 2.5 mm jack
Display: Micro HDMI connector for an external display (2nd viewfinder)
BODY DIMENSIONS
Weight (incl. 6 mm lens &
battery / without pistol grip): 3.15 lbs. / 1430 g
L x H x D (body without lens
& pistol grip): 175mm x 176mm x 82mm
COLOURS
Black Midnight and White Bone China
Description
What's Inside the Box

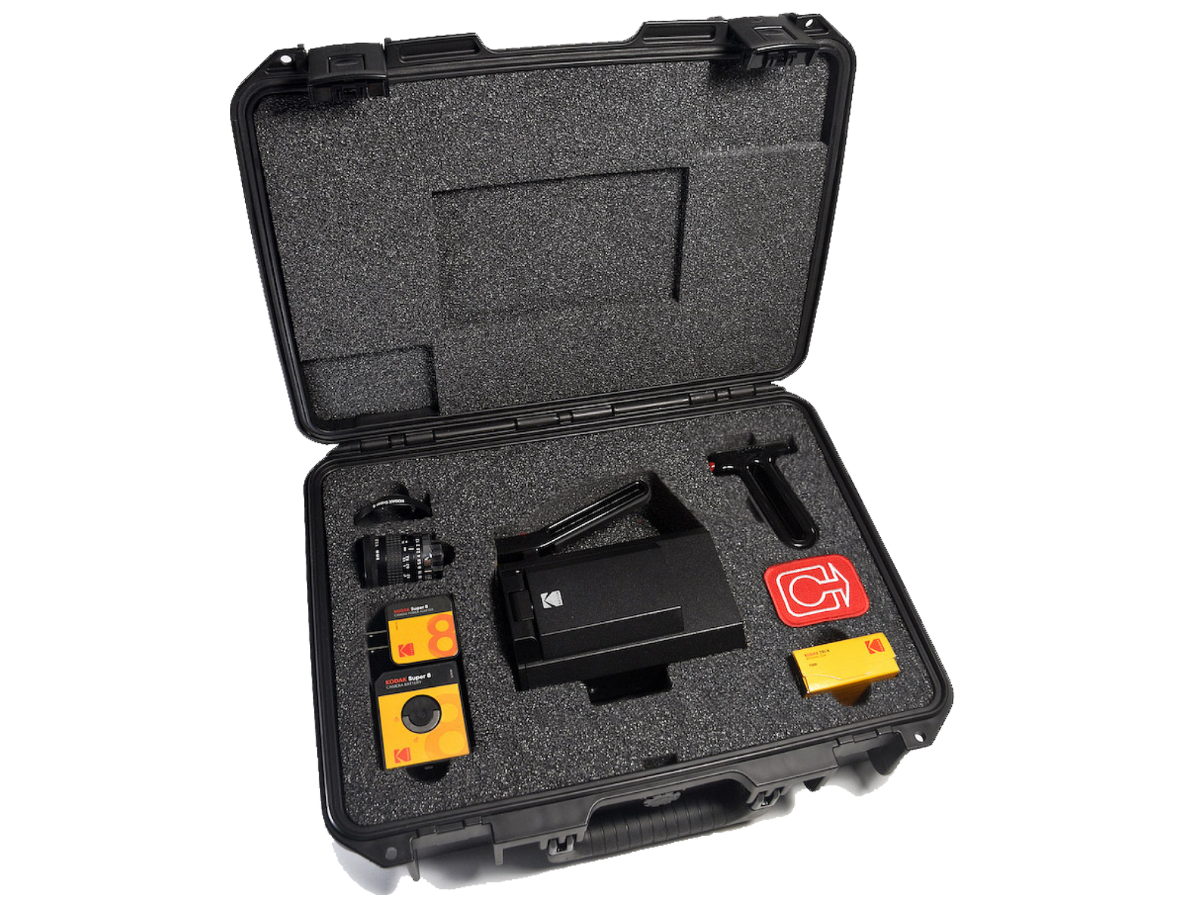

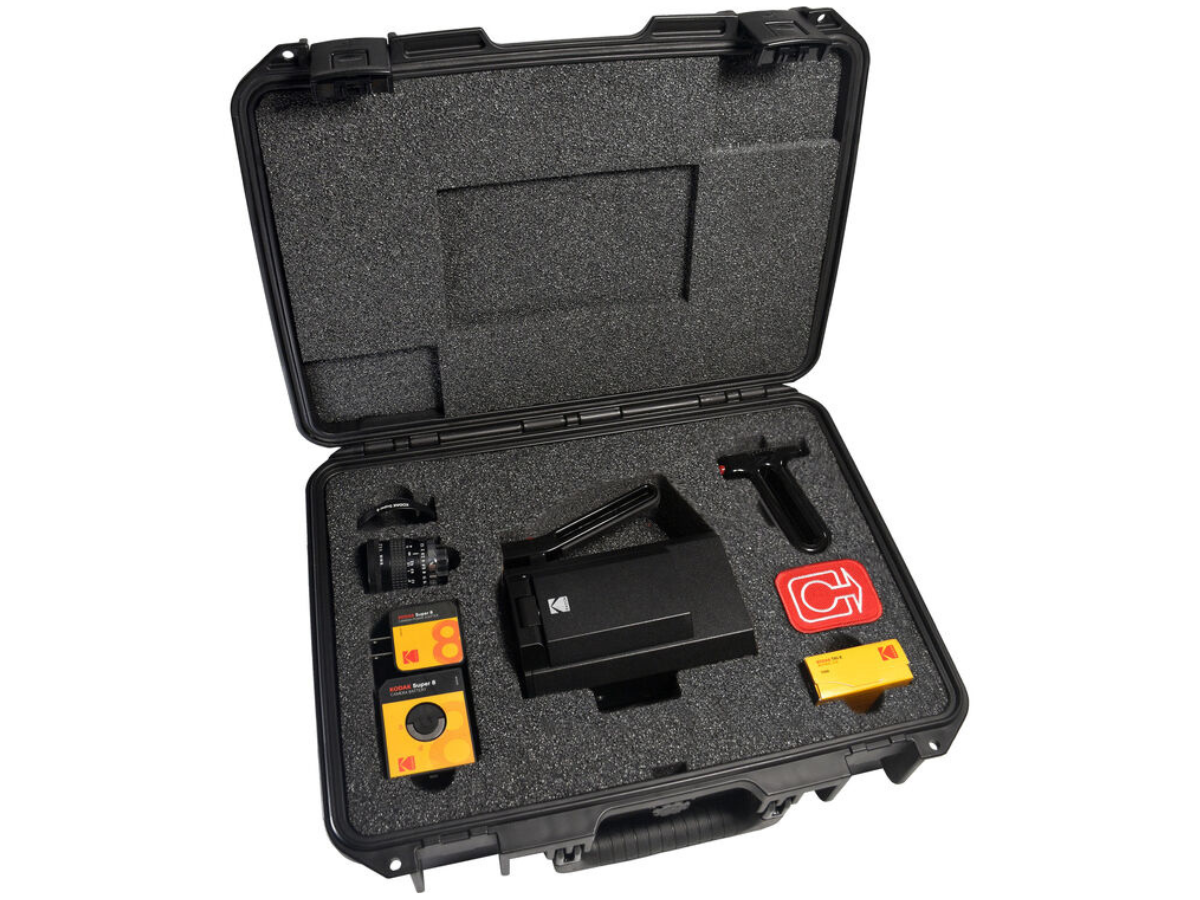

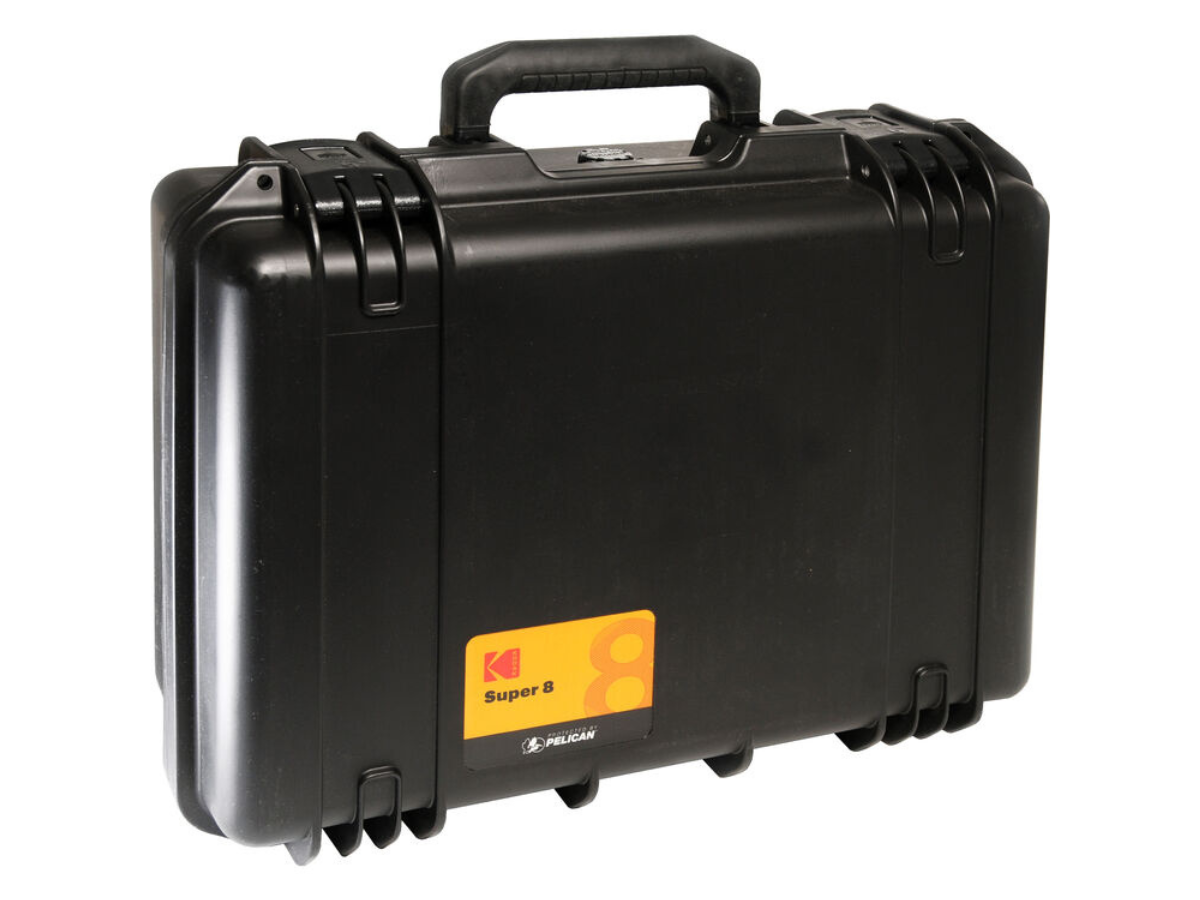

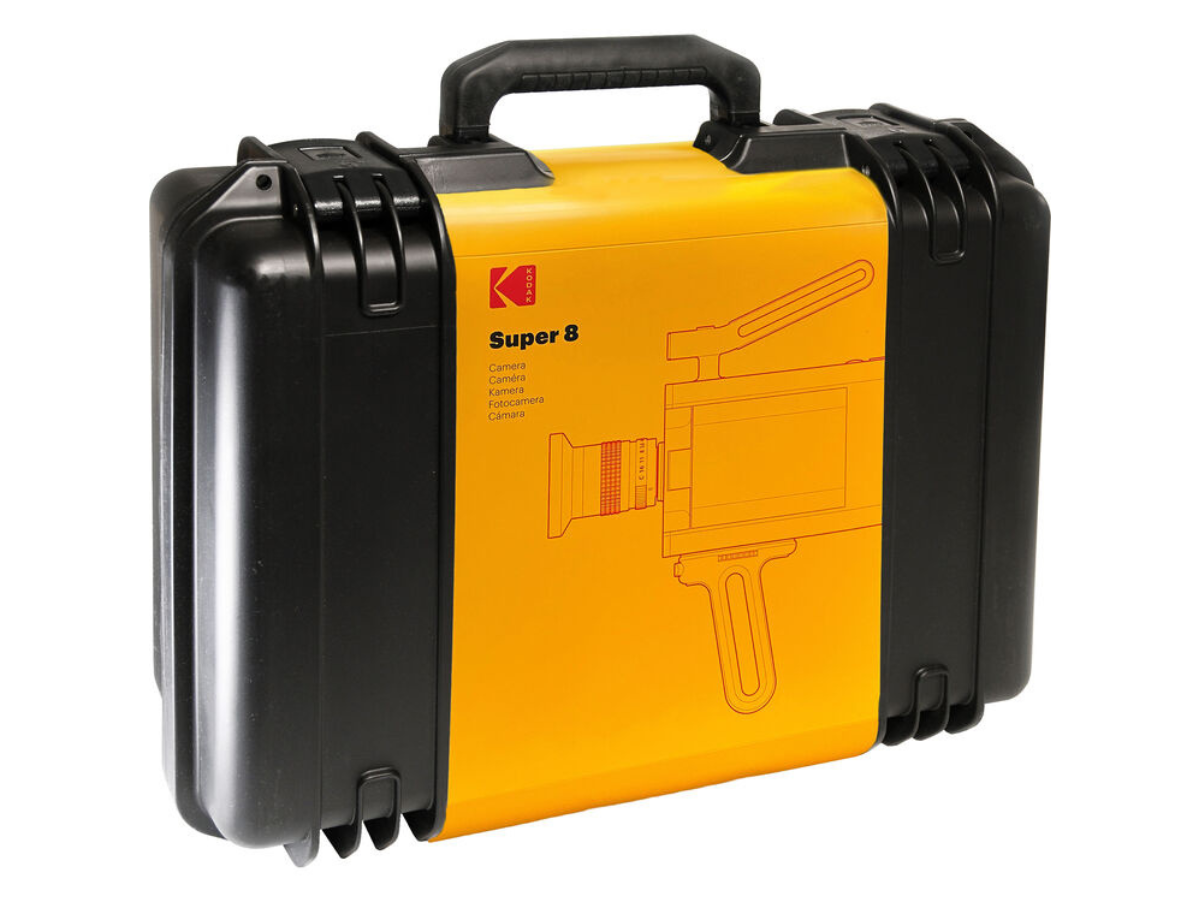

- Pelican Case

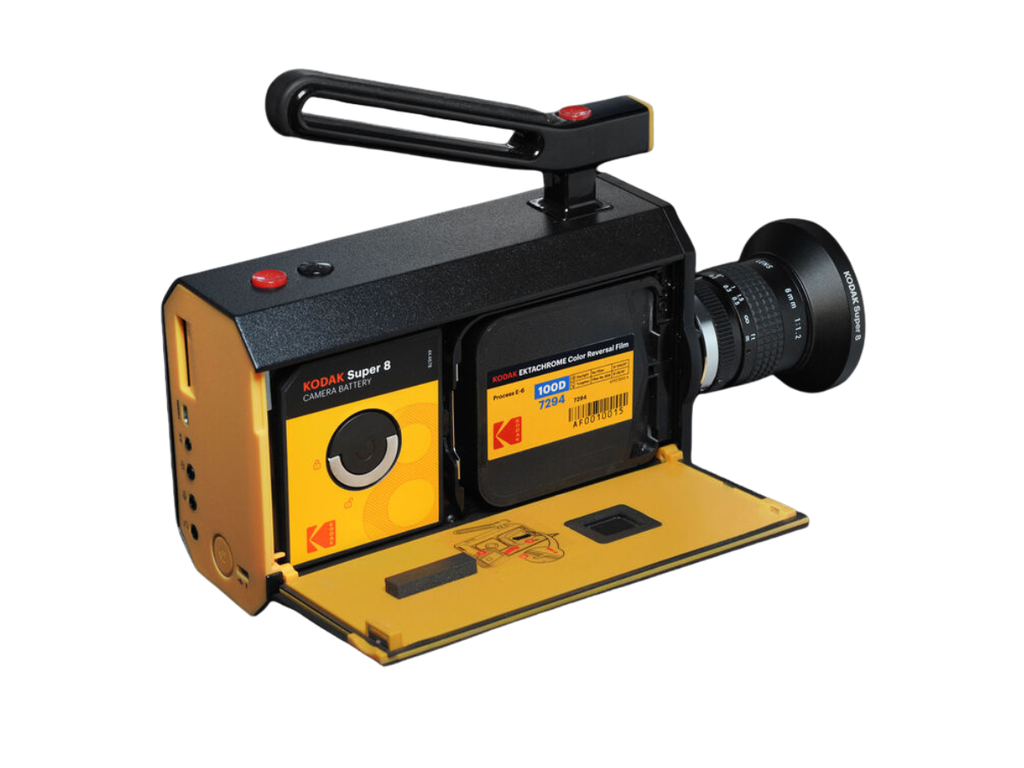

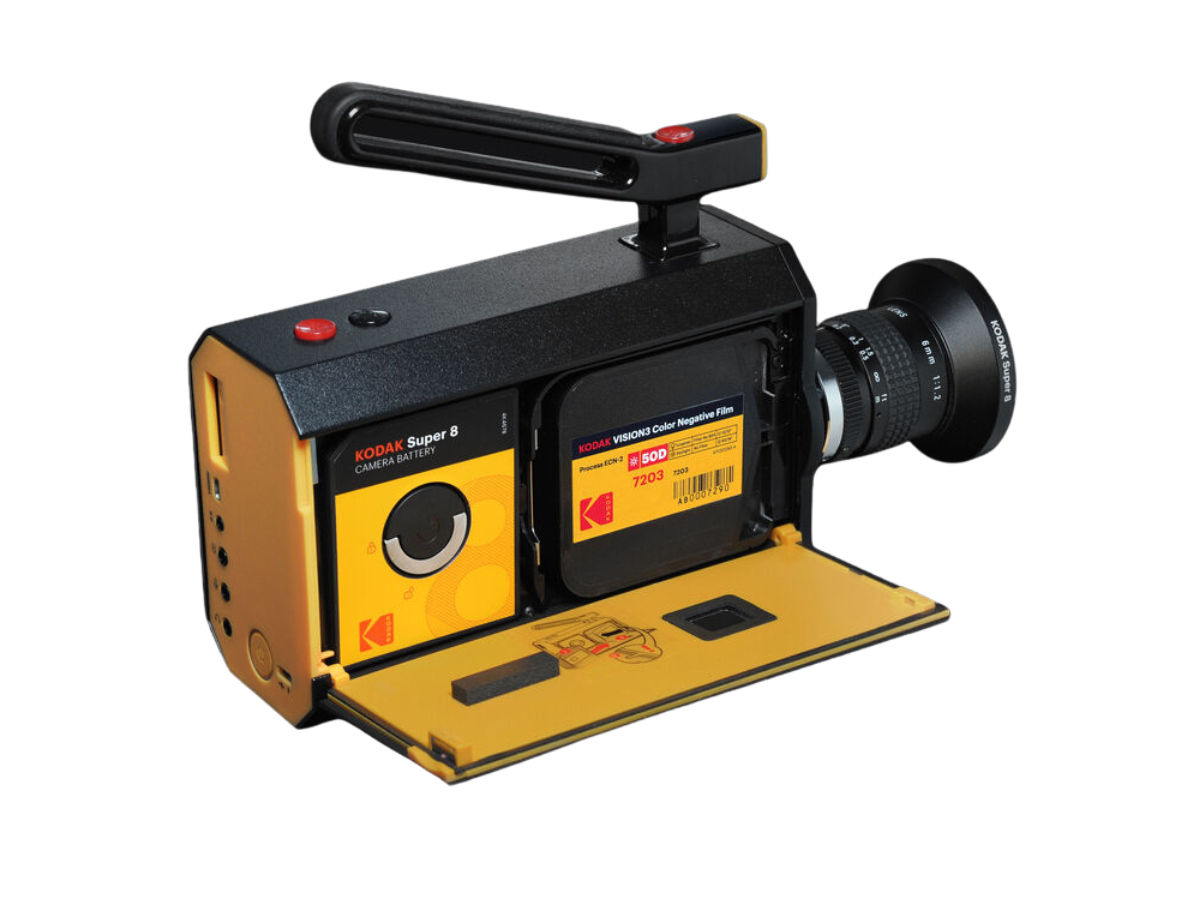

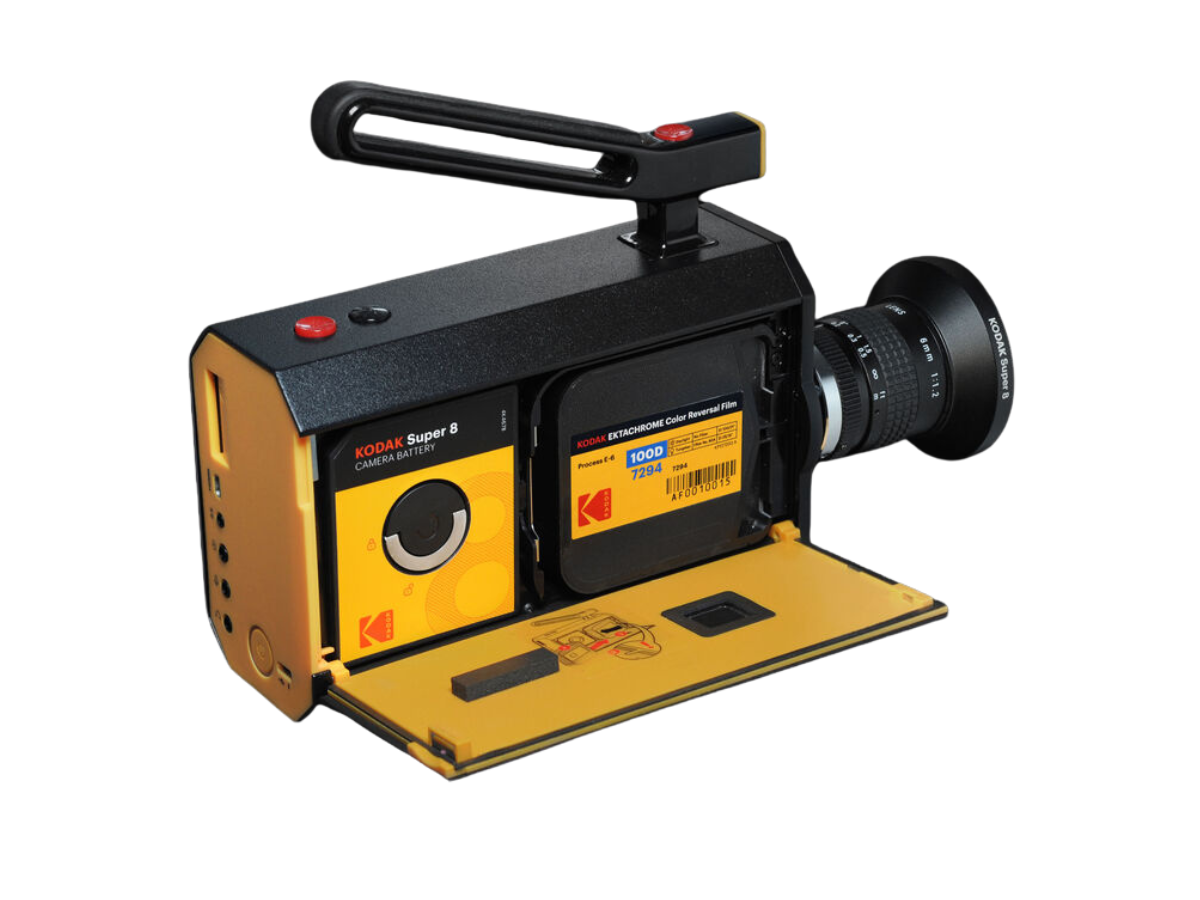

- KODAK Super 8 Camera
- Wide Angle 6 mm Lens 1:1.2
- C-Mount Cap, Lens Cap and Lens Hood
- Pistol Grip with trigger
- KODAK Super 8 Camera Battery
- Micro USB Charging Cable

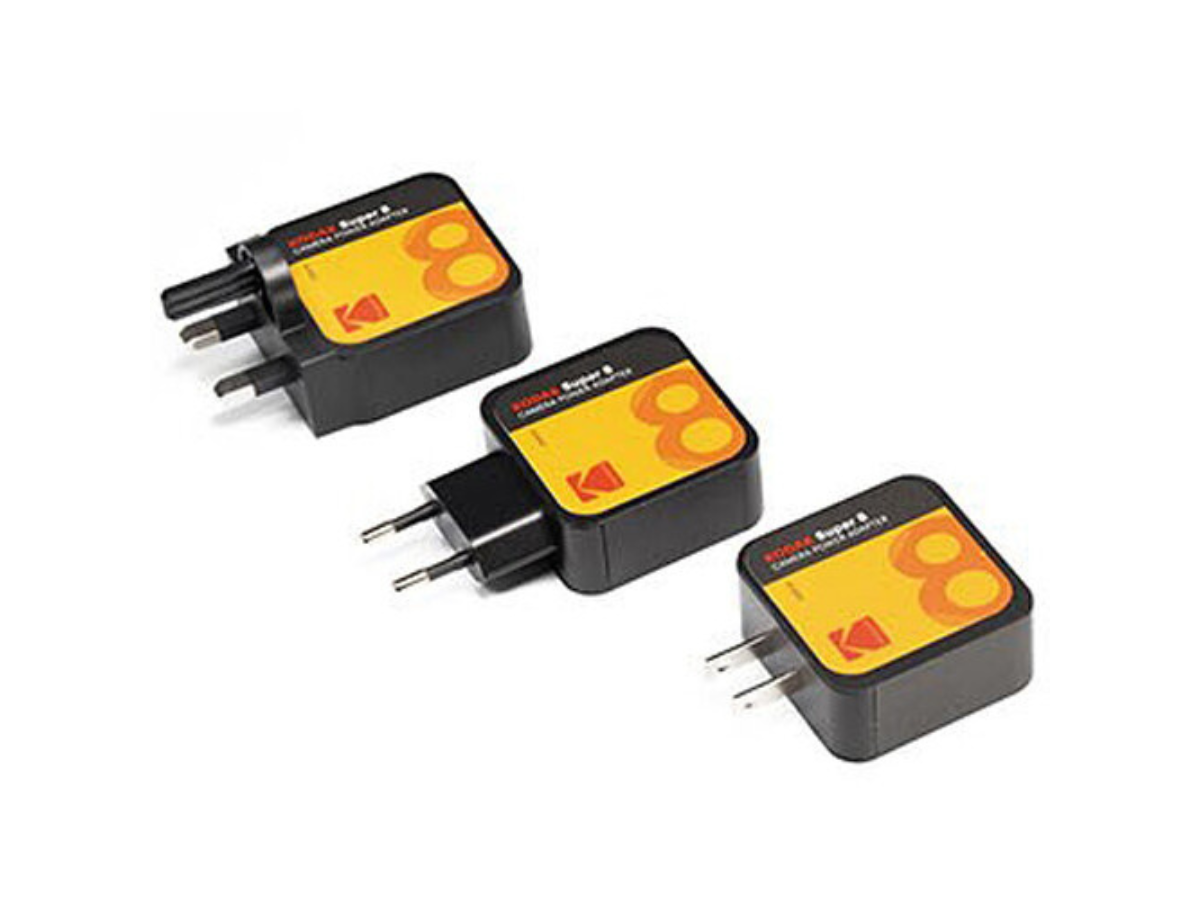

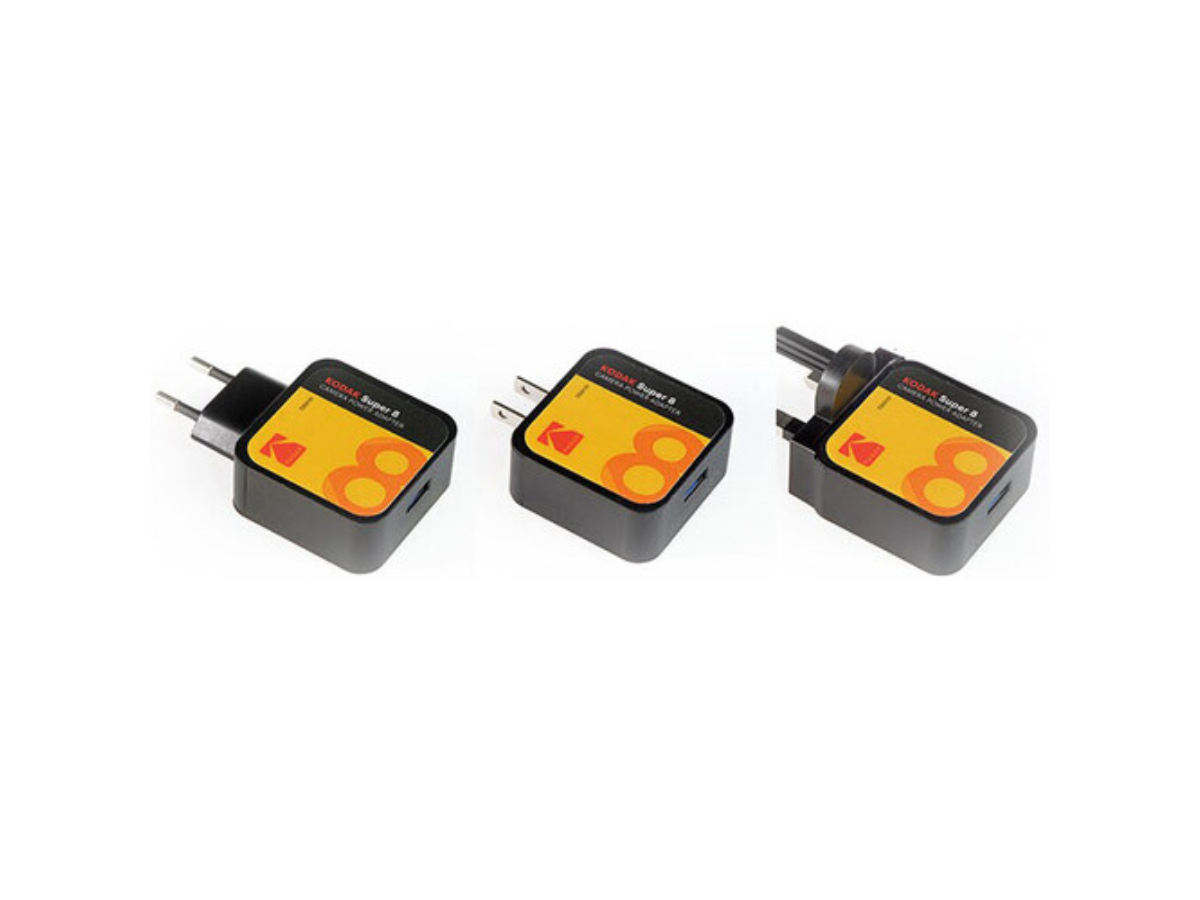

- KODAK Super 8 Camera USB Power Adapter(s)
- Cleaning Cloth

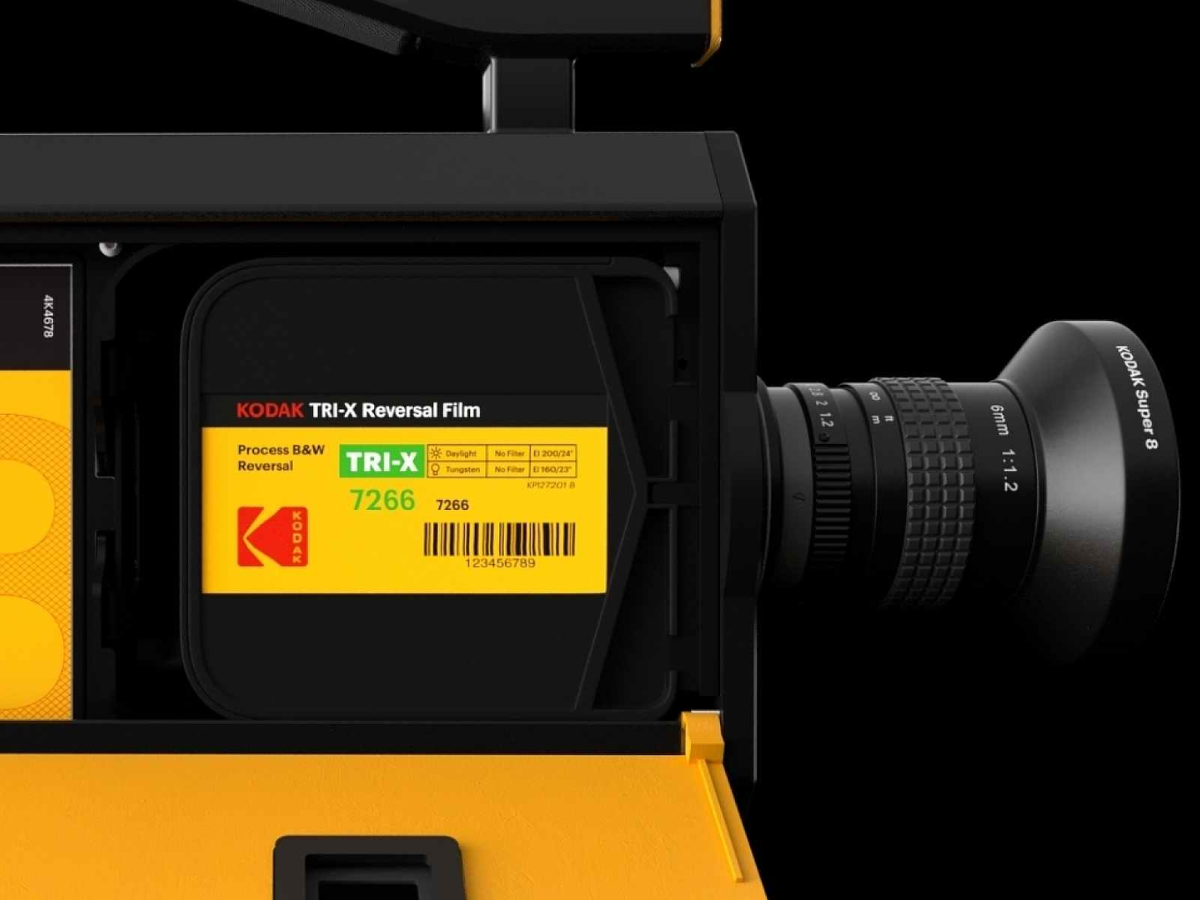

- KODAK TRI-X Black & White Reversal Film 7266
- Getting Started Guide

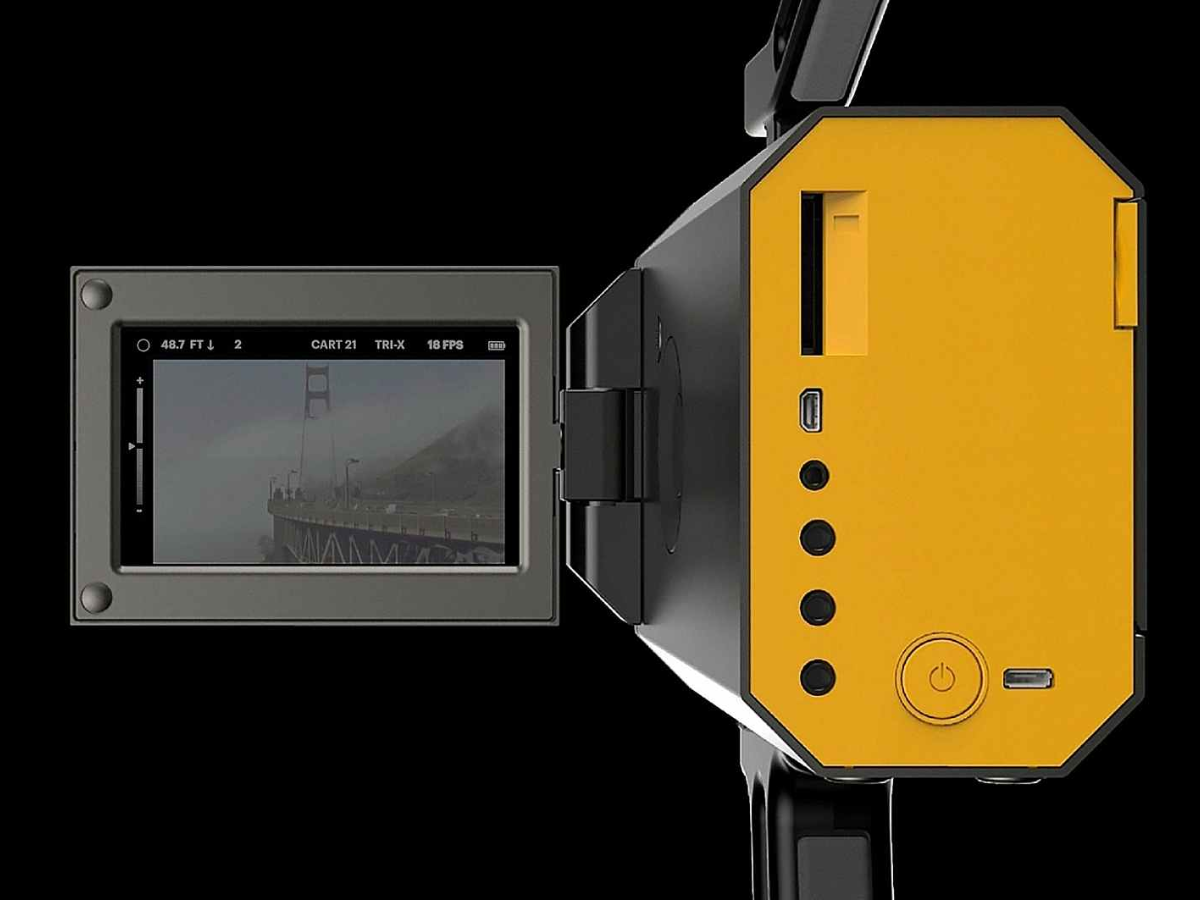

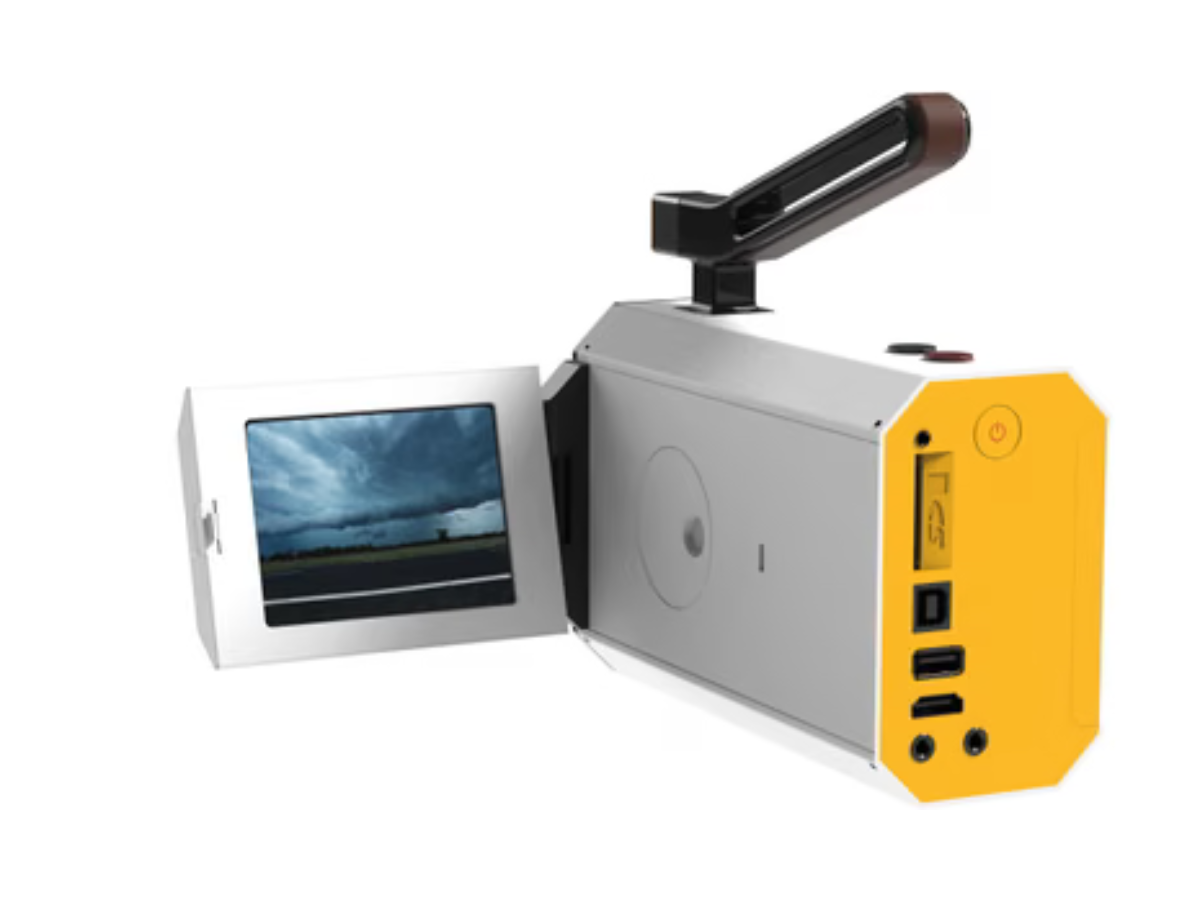

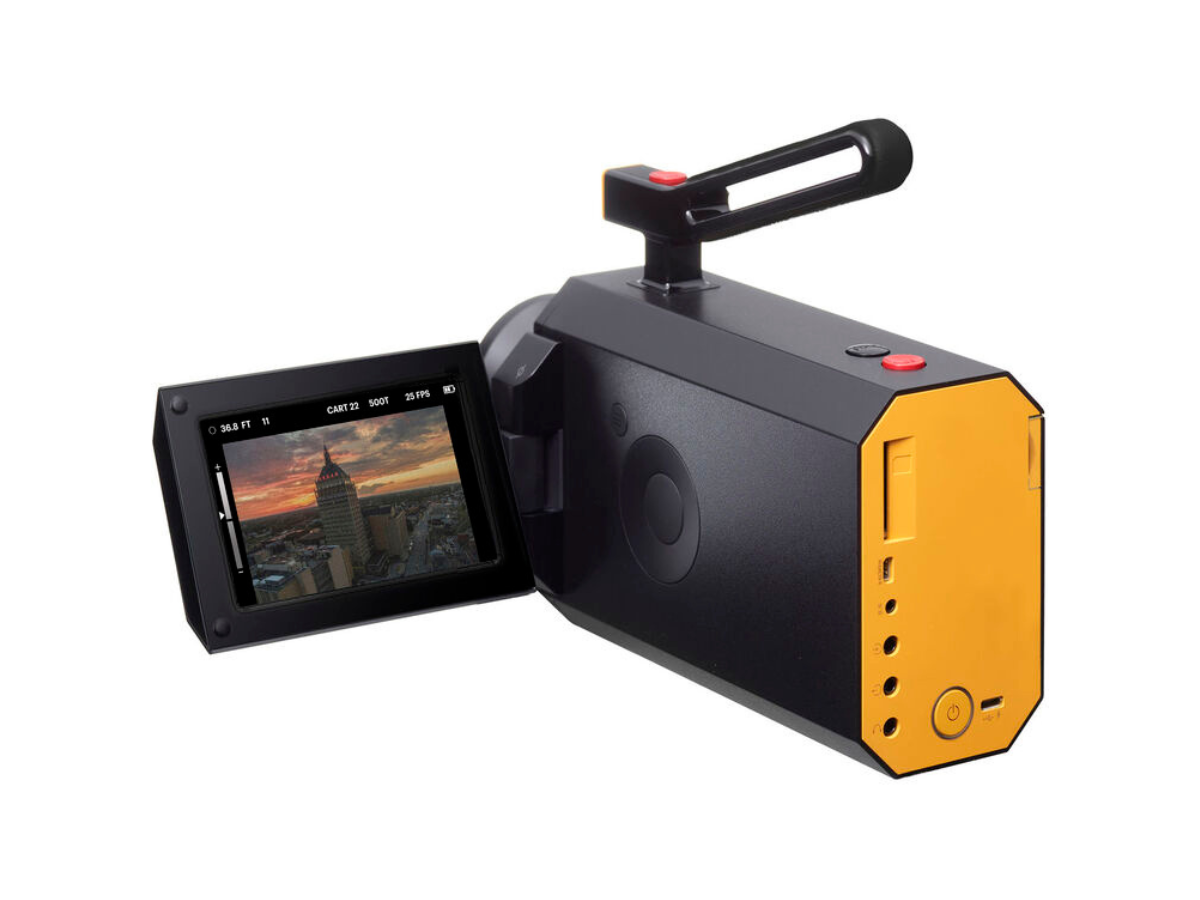

4" LCD Viewfinder
Composing shots on Super 8 is easier than ever before. The LCD viewfinder swivels, allowing a wide range of shooting angles.
Thanks to its expanded screen, navigating features like aspect ratio overlays, interactive menu selection and camera settings is intuitive and straightforward.

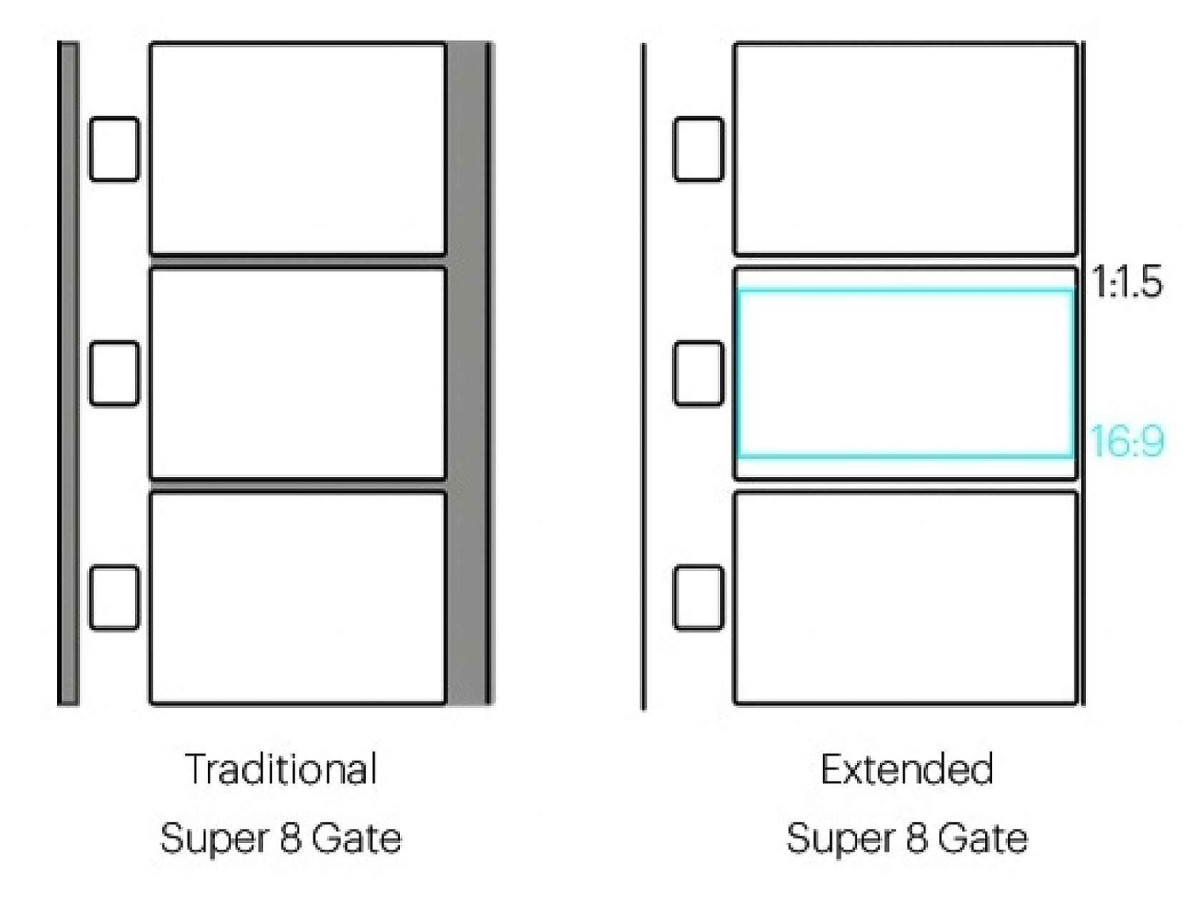

Extended Gate
16:9 (widescreen) shooting and increased visual resolution. The Super 8 Camera's extended gate optimizes more capture area of the film strip – allowing for an 11% larger image than traditional S8 cameras.
This 14:9 full frame gives your Super 8 film the flexibility to intercut with other modern media capture formats, seamlessly filling the frame of today's TV and video screens.

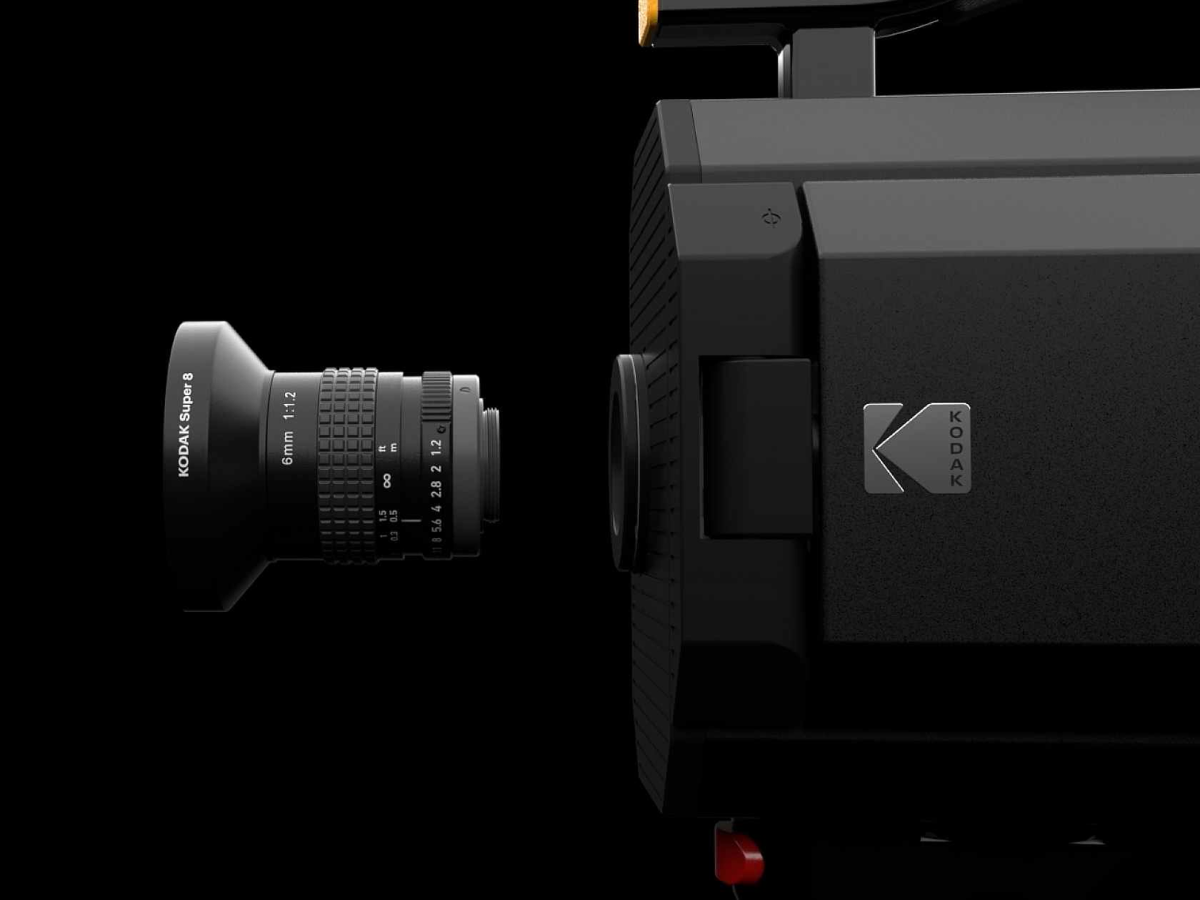

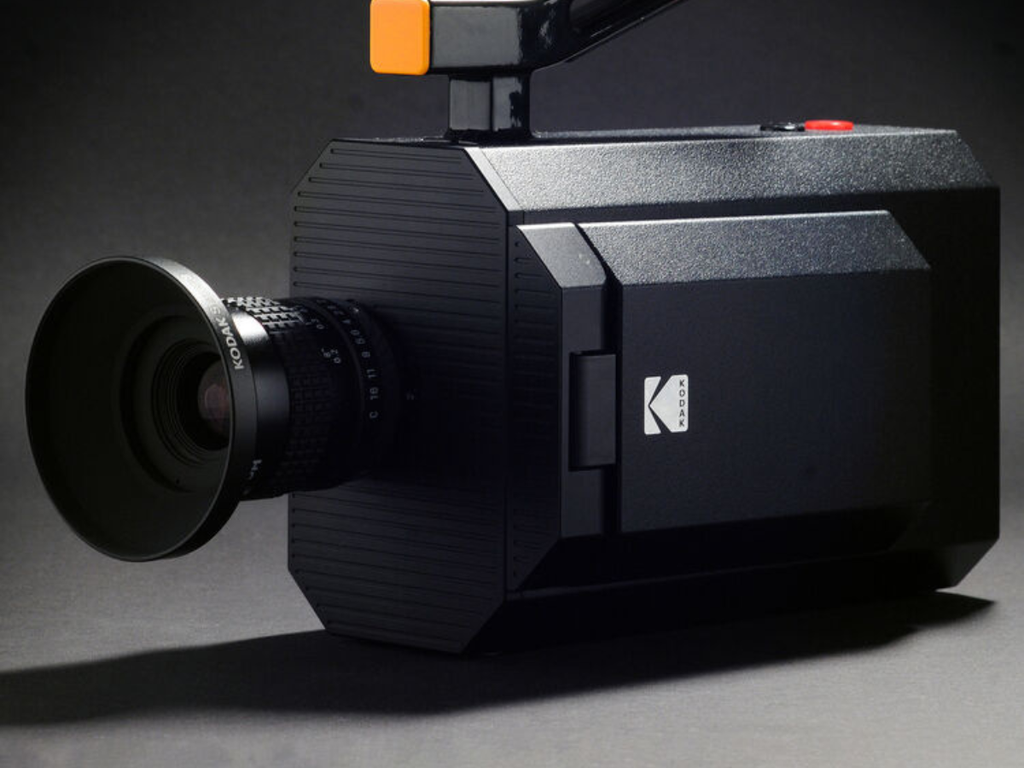

Interchangeable C-Mount Lens
The new Super 8 Camera comes equipped with a detachable wide-angle 6mm 1:1.2 C-mount lens, offering a range of creative choice for filmmakers of all levels. Use any other C-mount prime lens or adapters to mount the lens of your choice. Experiment with vintage lenses for a retro feel.

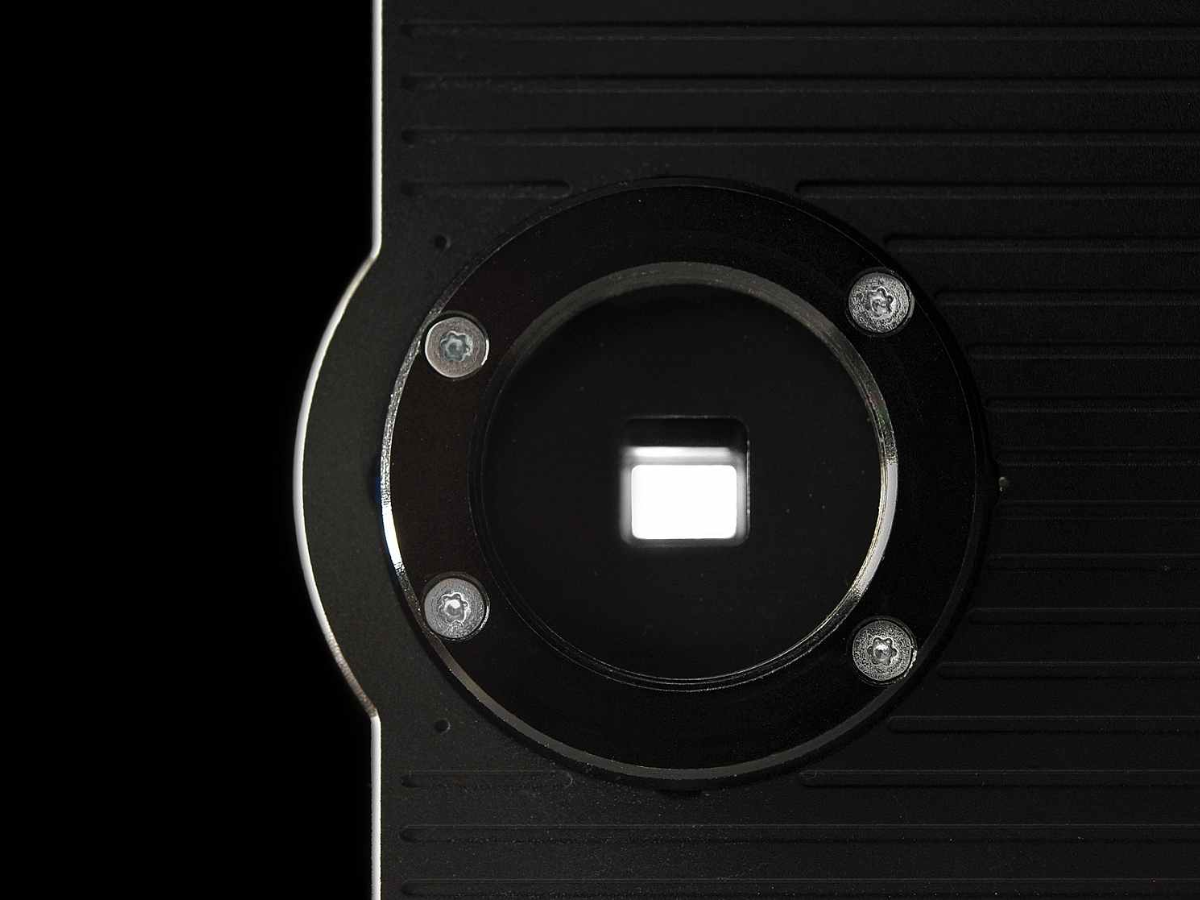

Image Purity
The camera was designed with image quality in mind, so there are no filters and no glass between the lens and the film plane, just air.
This feature maximises the light that reaches the Extended Gate for a more effective exposure of the film-stock.
It also empowers the filmmaker to unleash their creativity by making deliberate decisions about colour and exposure.
- No integrated conversion filters for colour temperature or exposure control
- Individual choice for filtering in front of the lens
- Manual Exposure control
Utilise the camera's integrated exposure meter or an external light meter to set the lens aperture and determine if a neutral density filter on the lens is necessary to achieve the desired exposure.
Connectivity & Crystal Sync
Capture high-quality audio seamlessly with the on-board sound recorder and external microphone connectivity via 3.5mm input directly to the integrated SD card reader. Monitor audio levels with live meters on the built-in LCD.
The first modern Super 8mm camera with crystal sync at 24 and 25 fps, plus over and under crank at 18 and 36 FPS.
Enhance capture with any HDMI enabled monitor via the micro HDMI output.

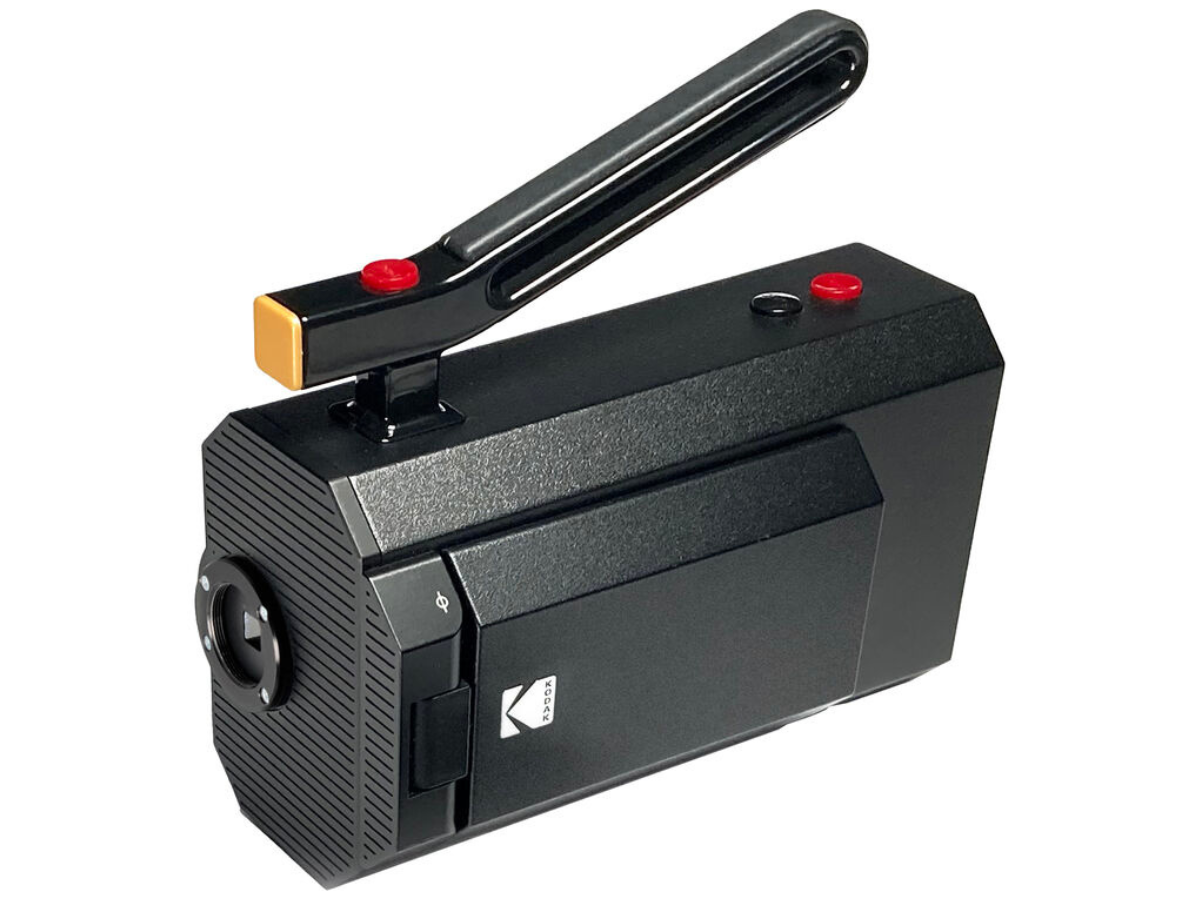

Versatile Handling

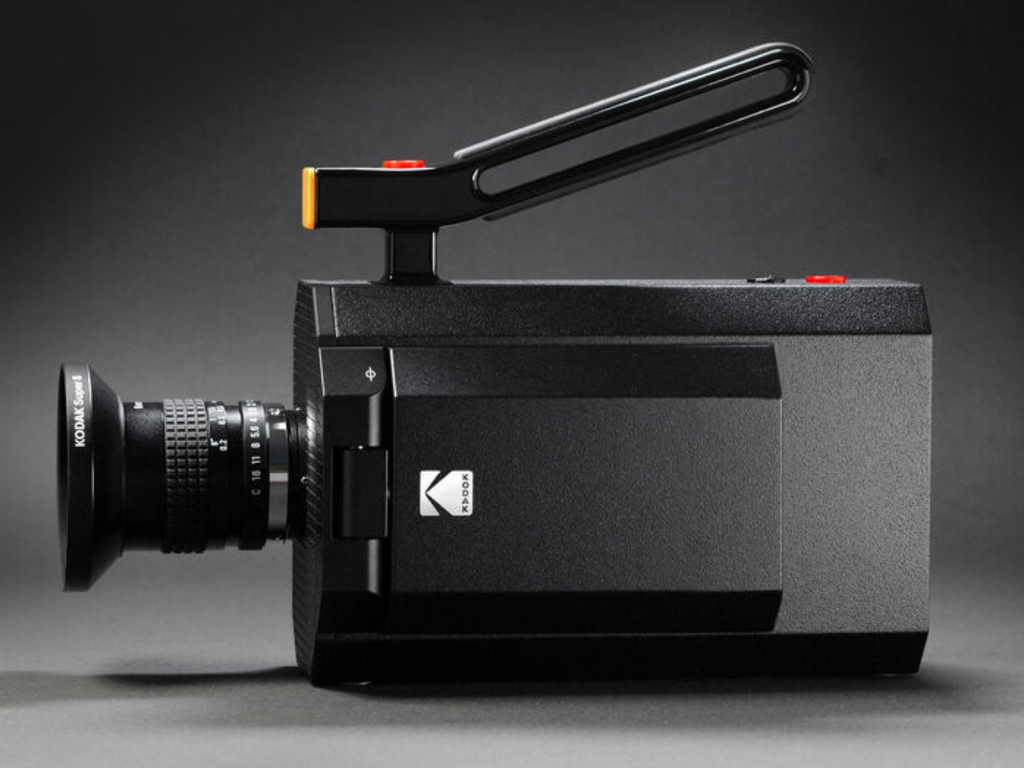

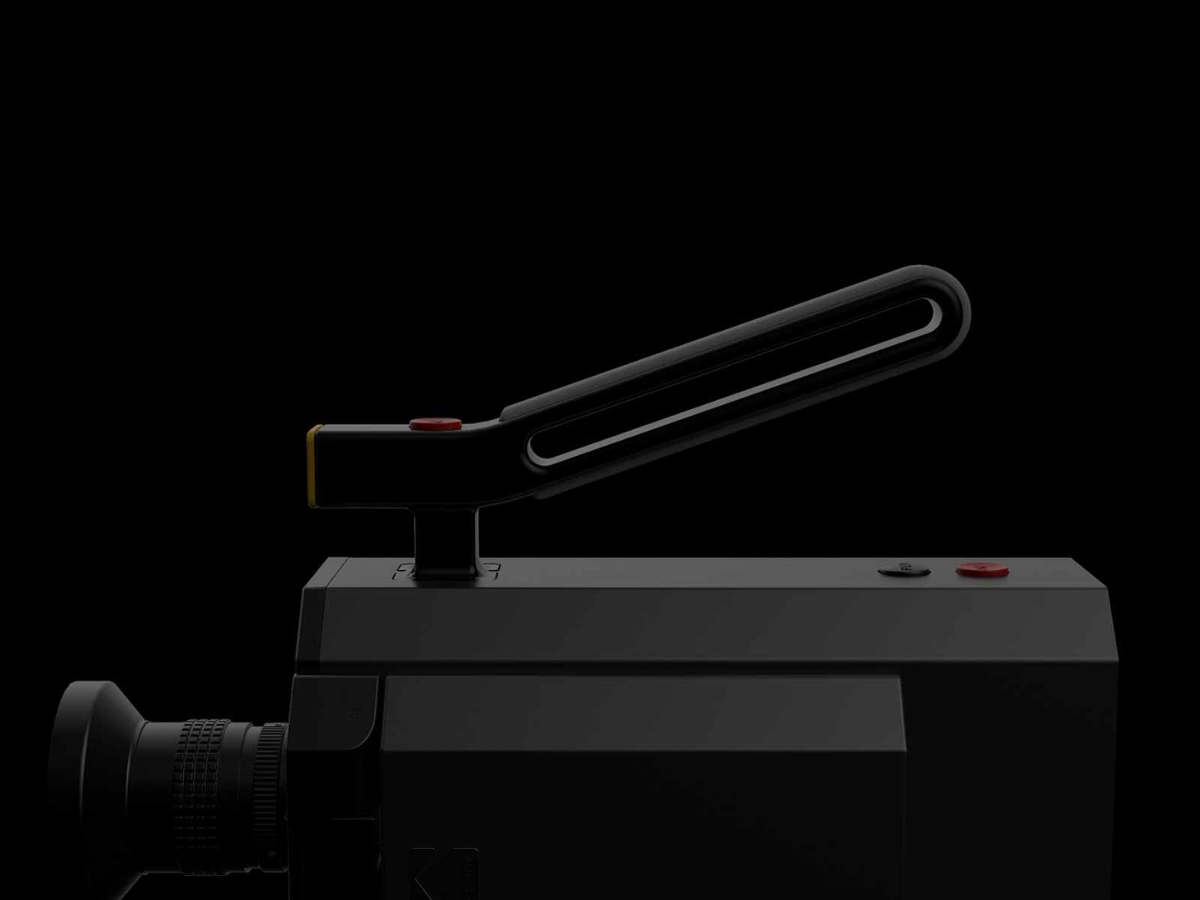

Sleek top handle design with an integrated run button to start and stop shooting.
Comfortable handling. Perfect in any setting, from studio set to hand-held action.

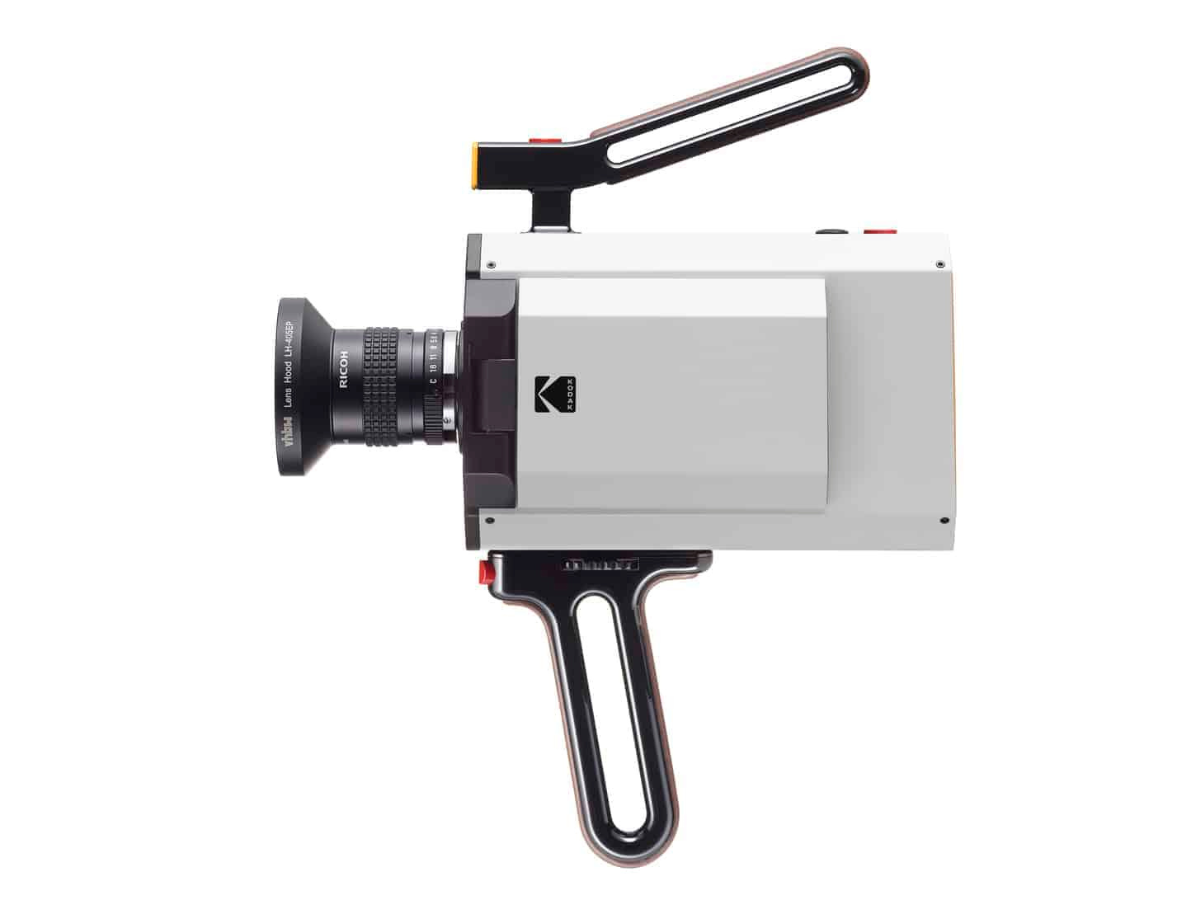

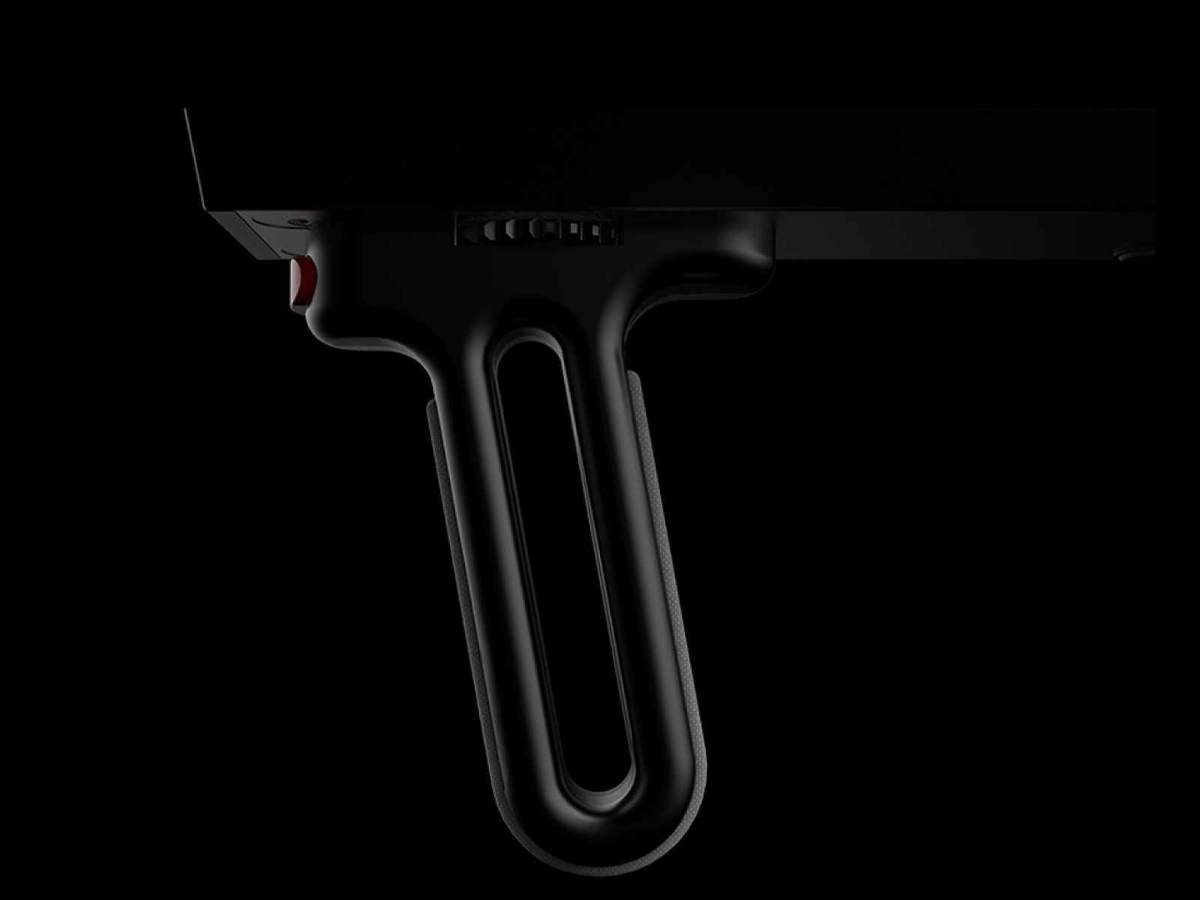

Pistol Grip

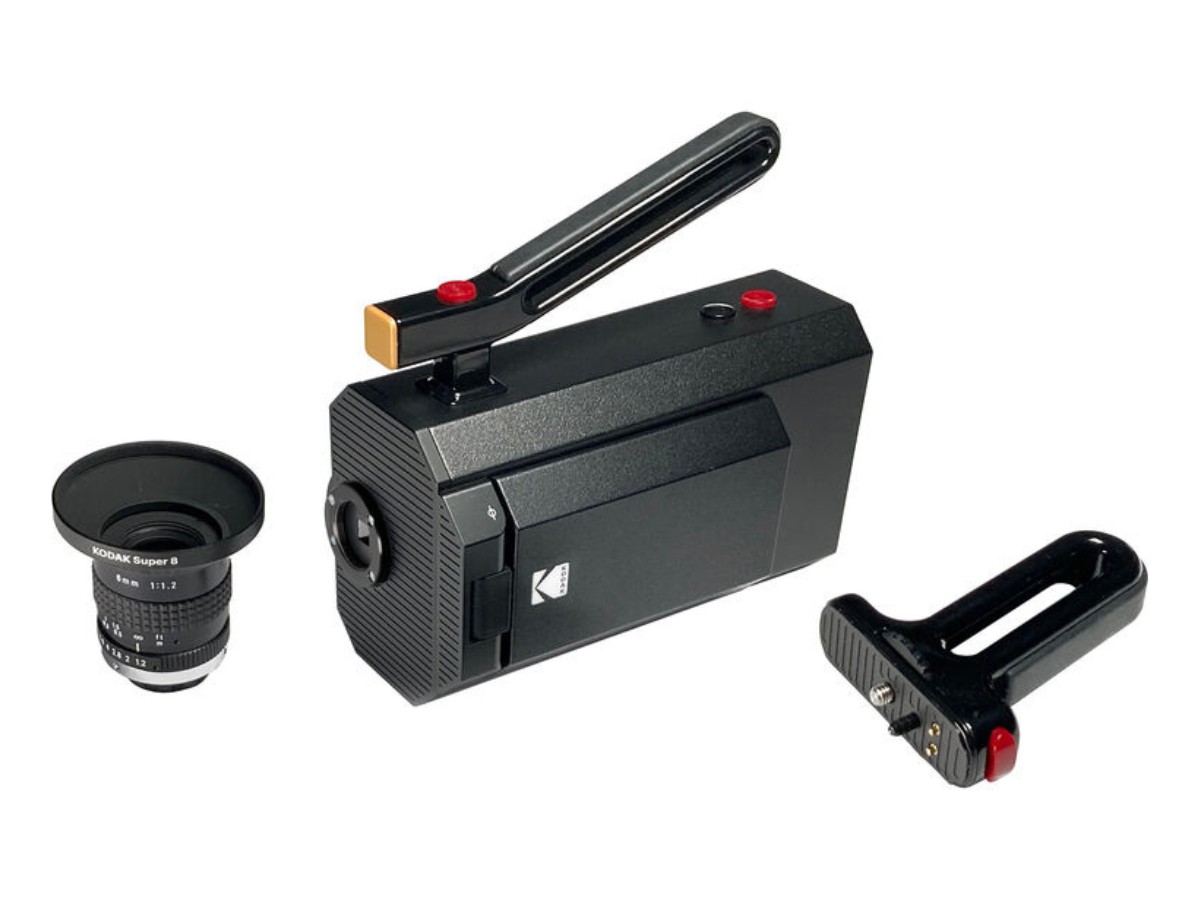

Switch easily from the top handle navigation to the detachable pistol grip with an additional run button for eye-level shots and a traditional Super 8 camera feel.
Today's Latest Film Technology

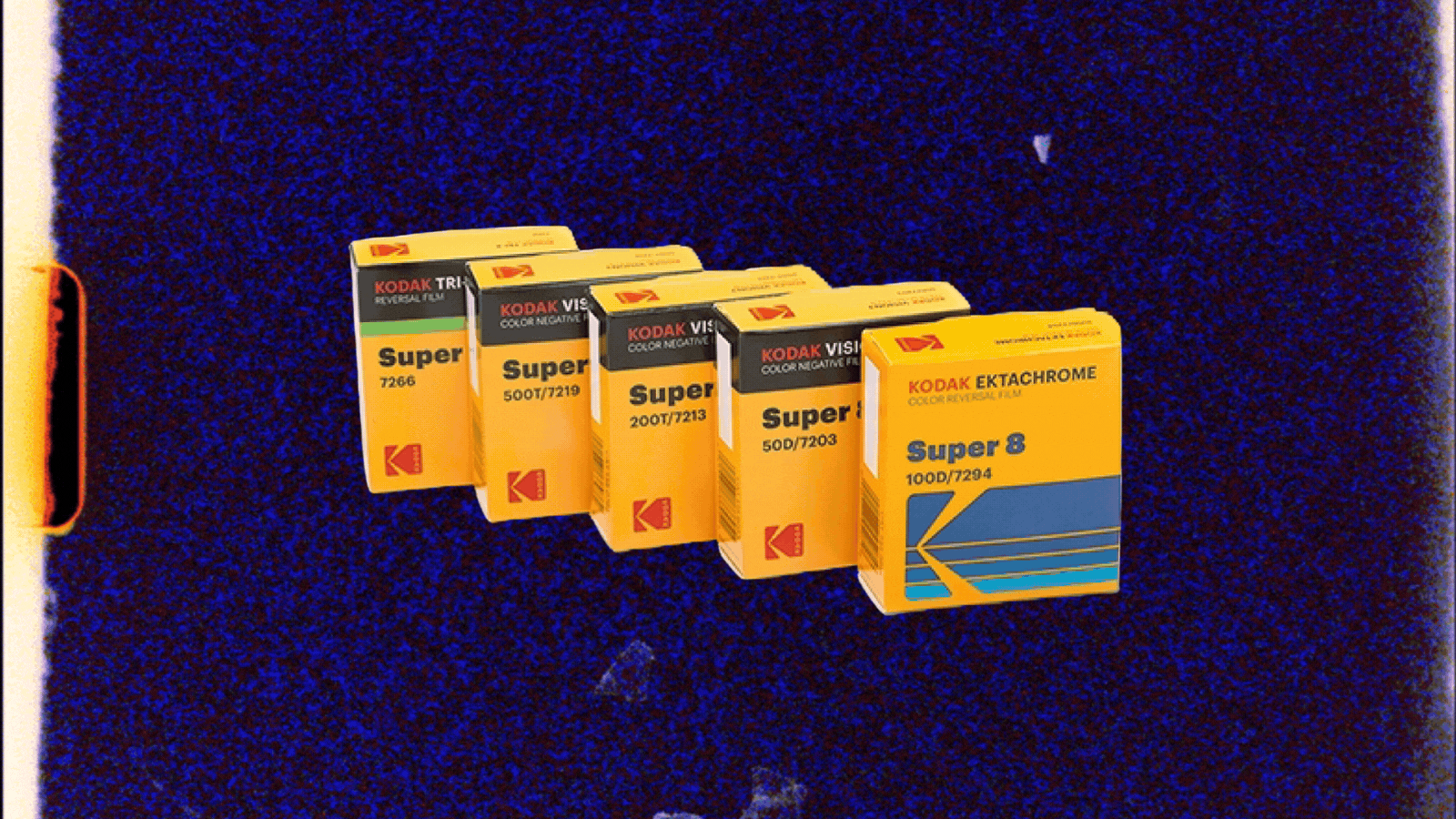

Each KODAK Super 8 cartridge is loaded with 50 feet of motion picture professional film - explore our range of Super 8 Cartridges.
